性能参数
|
心泵 型 号 |
离心泵 转 速 |
流量(m3/h) |
扬程 |
效率 |
功率 (kw) |
||
|
(r/min) |
m3/h |
l/s |
(m) |
(%) |
轴功率 |
电机功率 |
|
|
IS50-32-125 |
2900 |
12.5 |
3.47 |
20 |
60 |
0.13 |
2.2 |
|
|
1450 |
6.3 |
1.74 |
5 |
54 |
0.16 |
0.55 |
|
IS50-32-160 |
2900 |
12.5 |
3.47 |
32 |
54 |
2.02 |
3 |
|
|
1450 |
6.3 |
1.74 |
8 |
48 |
0.29 |
0.55 |
|
IS50-32-200 |
2900 |
12.5 |
3.47 |
50 |
48 |
3.54 |
5.5 |
|
|
1450 |
6.3 |
1.74 |
12.1 |
42 |
0.51 |
0.75 |
|
IS50-32-250 |
2900 |
12.5 |
3.47 |
80 |
38 |
7.16 |
11 |
|
|
1450 |
6.3 |
1.74 |
20 |
32 |
1.07 |
1.5 |
|
IS65-50-125 |
2900 |
25 |
6.94 |
20 |
69 |
1.97 |
3 |
|
|
1450 |
12.5 |
3.47 |
5 |
64 |
0.27 |
0.55 |
|
IS65-50-160 |
2900 |
25 |
6.94 |
32 |
65 |
3.35 |
5.5 |
|
|
1450 |
12.5 |
3.47 |
8 |
60 |
0.45 |
0.75 |
|
IS65-40-200 |
2900 |
25 |
6.94 |
50 |
60 |
5.67 |
7.5 |
|
|
1450 |
12.5 |
3.47 |
12.5 |
55 |
0.77 |
1.1 |
|
IS65-40-250 |
2900 |
25 |
6.94 |
80 |
50 |
10.89 |
15 |
|
|
1450 |
12.5 |
3.47 |
20 |
46 |
1.48 |
2.2 |
|
IS65-40-315 |
2900 |
25 |
6.94 |
125 |
50 |
21.3 |
30 |
|
|
1450 |
12.5 |
3.47 |
32 |
46 |
2.94 |
4 |
|
IS80-65-125 |
2900 |
50 |
13.9 |
20 |
40 |
3.63 |
5.5 |
|
|
1450 |
25 |
6.94 |
5 |
37 |
0.48 |
0.75 |
|
IS80-65-160 |
2900 |
50 |
13.9 |
32 |
75 |
5.97 |
7.5 |
|
|
1450 |
25 |
6.94 |
8 |
71 |
9.87 |
1.5 |
|
IS80-50-200 |
2900 |
50 |
13.9 |
50 |
69 |
9.87 |
15 |
|
|
1450 |
25 |
6.94 |
12.5 |
65 |
1.31 |
2.2 |
|
IS80-50-250 |
2900 |
50 |
13.9 |
80 |
63 |
17.3 |
22 |
|
|
1450 |
25 |
6.94 |
20 |
60 |
2.27 |
3 |
|
IS80-50-315 |
2900 |
50 |
13.9 |
125 |
54 |
31.5 |
37 |
|
|
1450 |
25 |
6.94 |
32 |
52 |
4.19 |
5.5 |
|
IS100-80-125 |
2900 |
100 |
27.8 |
20 |
78 |
7 |
11 |
|
|
1450 |
50 |
13.9 |
5 |
75 |
0.91 |
1.5 |
|
IS100-80-160 |
2900 |
100 |
27.8 |
32 |
78 |
11.25 |
15 |
|
|
1450 |
50 |
13.9 |
8 |
75 |
1.45 |
2.2 |
|
IS100-65-200 |
2900 |
100 |
27.8 |
50 |
76 |
17.9 |
22 |
|
|
1450 |
50 |
13.9 |
12.5 |
73 |
2.63 |
4 |
|
IS100-65-250 |
2900 |
100 |
27.8 |
80 |
72 |
30.3 |
37 |
|
|
1450 |
50 |
13.9 |
20 |
68 |
4 |
5.5 |
|
IS100-65-315 |
2900 |
100 |
27.8 |
125 |
66 |
51.6 |
75 |
|
|
1450 |
50 |
13.9 |
32 |
63 |
6.92 |
11 |
|
IS125-100-200 |
2900 |
200 |
55.6 |
50 |
81 |
33.6 |
45 |
|
|
1450 |
100 |
27.8 |
12.5 |
76 |
4.48 |
7.5 |
|
IS125-100-250 |
2900 |
200 |
55.6 |
80 |
78 |
55.9 |
75 |
|
|
1450 |
100 |
27.8 |
20 |
76 |
7.79 |
11 |
|
IS125-100-315 |
1450 |
100 |
27.8 |
32 |
73 |
11.9 |
15 |
|
IS125-100-400 |
1450 |
100 |
27.8 |
50 |
65 |
21 |
30 |
|
IS150-125-315 |
1450 |
200 |
55.6 |
32 |
79 |
22.08 |
30 |
|
IS150-125-400 |
1450 |
200 |
55.6 |
50 |
75 |
36.3 |
45 |
|
IS200-150-250 |
1450 |
400 |
111.1 |
20 |
82 |
26.6 |
37 |
|
IS200-150-315 |
1450 |
400 |
111.1 |
32 |
80 |
42.5 |
55 |
|
IS200-150-400 |
1450 |
400 |
111.1 |
50 |
81 |
67.2 |
90 |

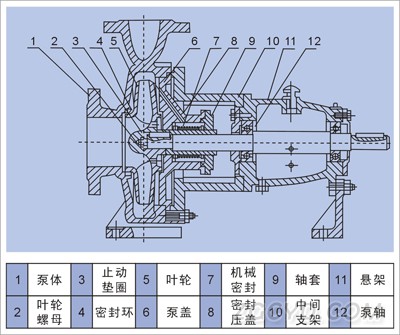

产品结构
